High Power ns-Pulse VCSEL Driver Board
High Power ns-Pulse VCSEL Driver Board
Conventional external signal generators cannot deliver the nanosecond-pulse drive currents required by LiDAR systems.
Raysees solves this with an integrated proprietary pulse generation circuit — no external signal generator needed —
capable of producing drive currents up to 40 A with nanosecond-level pulse widths.
A single driver board supports multiple VCSEL package formats, enabling nanosecond narrow-pulse
driving of multi-junction high-power VCSEL chips.
Accelerate your LiDAR product definition and hardware bring-up — faster and simpler.

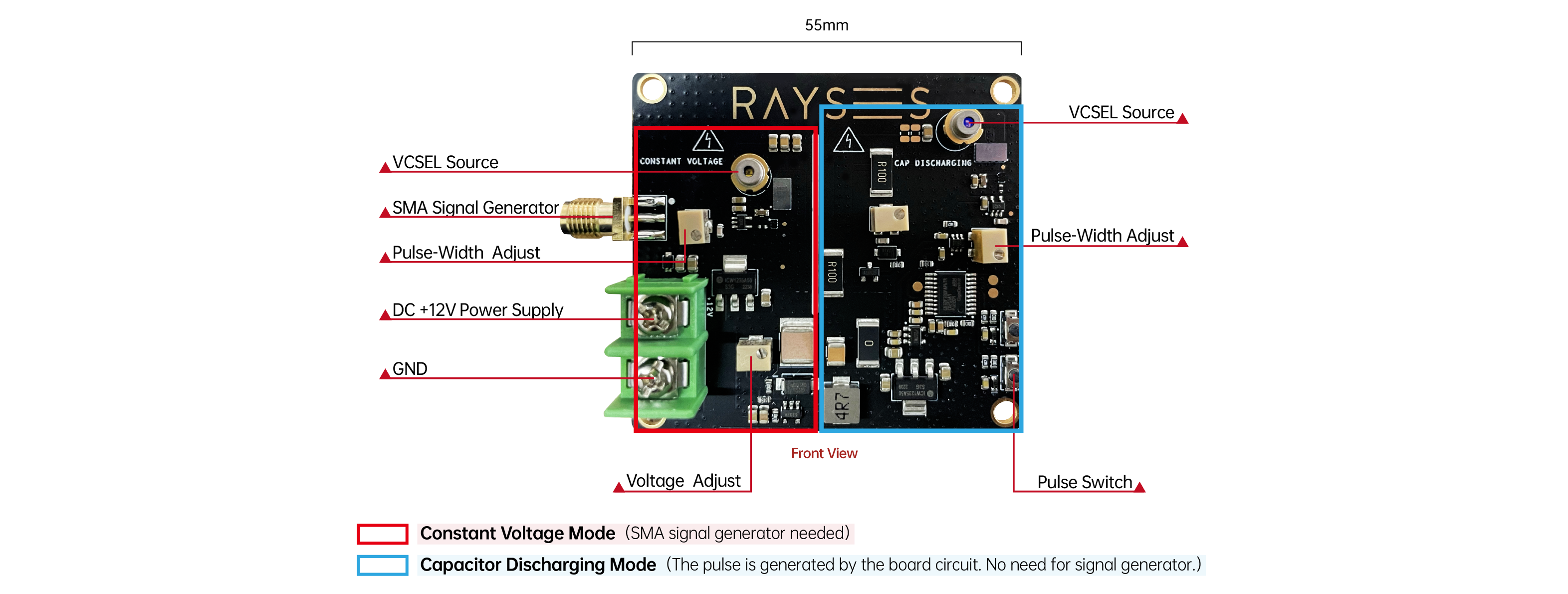

Two operating modes are available:
Constant Voltage Mode and Capacitor Discharging Mode.
Product Features
-
Narrow pulse current drive
for VCSELs -
Real-time adjustable pulse
width and output voltage -
Compatible with multiple
VCSEL packages
(5050 / 2835 / 3535 / TO-CAN) -
Pulse width down to 1.5 ns
duty cycle as low as 0.2% -
Peak current up to 8.5 A
(upgradable to 40 A) -
External signal generator
interface for flexible integration
Applications
-
LIDAR
-
ADAS
-
LDS ranging LiDAR
-
Laser obstacle avoidance
Adopting Raysees independently developed signal generation circuit
One driver board. Compatible with multiple VCSEL package configurations.
Product Series
Product Model  | Dimension Power | Supply Mode | Driving Voltage | Drive Current | Frequency | Pulse Width | Diversified Packaging |
|---|---|---|---|---|---|---|---|
NS-DRV.01 | 60*60mm | DC-12V | 12-28V | 0-8A | Board default 200KHZ Frequency software adjustable | 2ns (min)~tens of ns (Flexible and adjustable) | 5050/3532/3528 TO packaging |
