Automotive Certified VCSEL
VCSELs Enable Safer, Smarter Driving
VCSELs are widely used in automotive LiDAR, ADAS, in-cabin sensing, and intelligent cockpit applications.
As a next-generation light source, VCSELs offer significant advantages over traditional edge-emitting lasers (EELs),
enhancing safety, intelligence, and user experience.
Raysees leverages strong optical chip design capabilities,
along with proven high-volume manufacturing and quality control expertise,
to ensure high performance and stable mass production of automotive-grade VCSELs.
Related Products
Product series tailored to your needs
Product Features
-
AEC-qualified
IATF 16949 certified -
Adopted by leading NEV OEM supply chains
-
Multi-junction, high power
ultra-narrow divergence -
Fully domestic
vertically integrated supply chain -
In-house epitaxy
chip & process design -
Fast customization capability
Applications
-
LIDAR
-
ADAS
-
DMS/OMS
-
Gesture Recognition
Product Series
Product Model  | Chip Size | λ (nm) | Ith | Optical Power | Forward Voltage (V) | PCE (%) | Divergence (°) |
|---|---|---|---|---|---|---|---|
CR85-M741L | 41mil-1040x1040um | 850 | 0.15A | 0.7W | 1.9 | 35 | 22 |
CR90-U821L | 21mil-385x530um | 905 | 0.7A | 80W | 22 | 25 | 25 |
CR90-U816A（16CH） | 91mil-2315x1115um | 905 | 0.7A | 80W | 22 | 25 | 25 |
CR90-X190A(90CH) | 636mil-9791*4703um | 905 | 1.5A | 120W | 18 | 30 | 24 |
CR94-X164AA（64CH） | 209mil-5285*3665um | 940 | 1.5A | 150W | 24 | 24 | 26 |

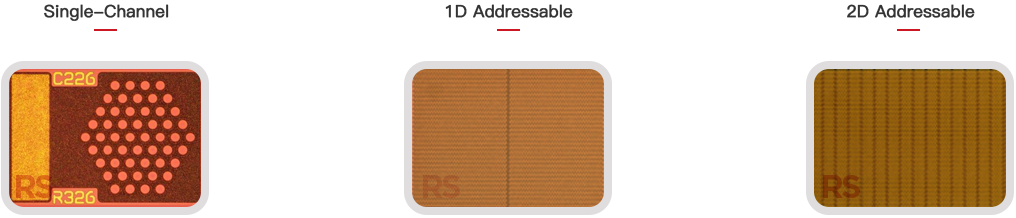

Addressable VCSEL | Customizable | 905/940 | Customizable | Customizable | Customizable | Customizable | Customizable |
