Consumer VCSEL
VCSEL Powering the Consumer Photonics Era
VCSEL chips serve a broad range of consumer applications, including proximity sensing,
ToF, 3D structured light, AR/VR, face recognition, and medical aesthetics.
A global leader in VCSEL chip supply, Raysees combines deep photonic design expertise
with rigorous quality control, with over tens of millions of units shipped.

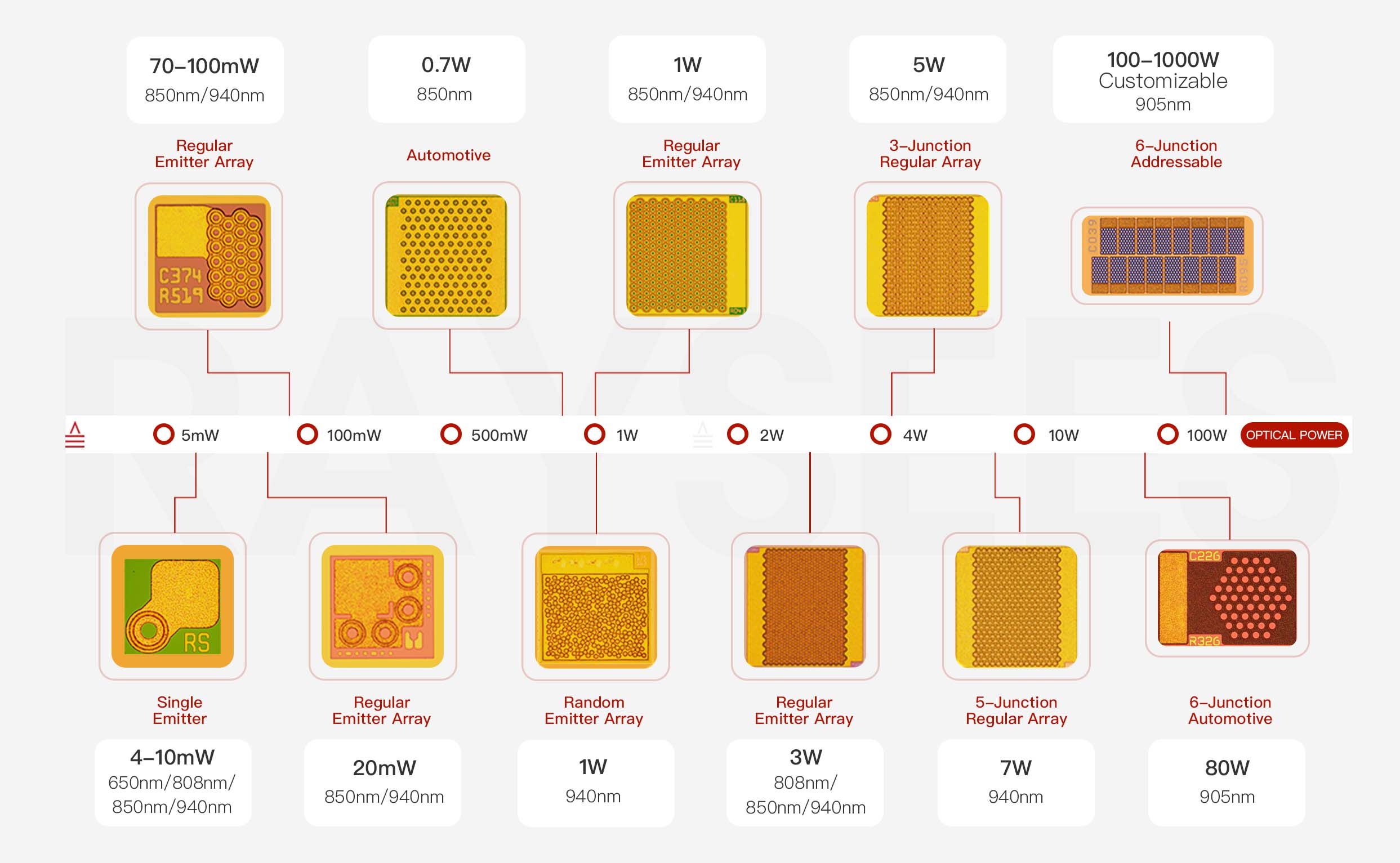

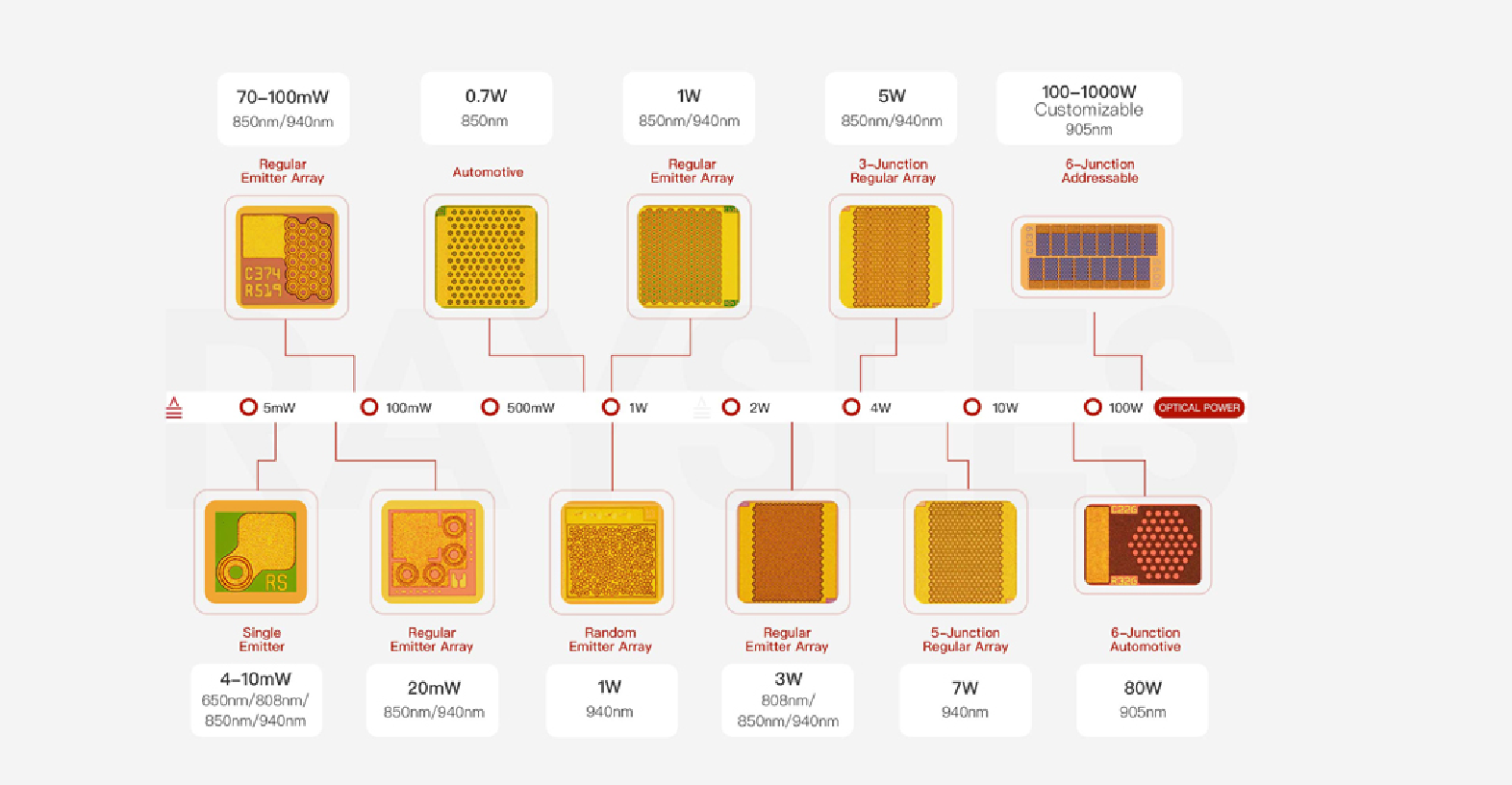

Comprehensive VCSEL Portfolio for Consumer Applications
Raysees offers a full-range VCSEL chip portfolio for consumer applications, including single- and multi-emitter chips,
regular and random emitter arrays, single- and multi-junction designs, and addressable arrays.
Optical output ranges from mW-level (CW) to hundreds of watts (pulsed),
with wavelengths covering visible red (650–680 nm) and near-infrared (808, 850, 905, 940 nm).
Product Features
-
100%
chip-level testing -
Mass production
>10M+ units shipped -
Multi-junction, high power
ultra-narrow divergence -
Domestic supply chain
full in-house control -
Proprietary epitaxial design
from epi to chip to process -
Rapid
custom development
-
Applications
-
TWS
-
Smartphones Tablets
-
AV/VR
-
Health Monitoring
-
Facial Recognition
-
3D Sensing
-
Medical Aesthetics
Product Series
Product Model | Chip Size | λ (nm) | Ith | Optical Power | Forward Voltage (V) | PCE (%) | Divergence (°) |
|---|---|---|---|---|---|---|---|
CR68-S2A7P | 7mil-195x155um | 680 | 5mA | 2mW | 1.9 | 16 | 21 |
CR68-S5A8M | 8mil-200x200um | 680 | 5.5mA | 5mW | 2.4 | 16 | 20 |
CR79-S4A7P | 7mil-160x160um | 793 | 3.7mA | 4.4mW | 2.05 | 25 | 15 |
CR80-S8A6P | 6mil-150×150um | 808 | 3.5mA | 7mW | 1.9 | 38 | 21 |
CR80-H351M | 51mil-1291×1096um | 808 | 1.4A | 2.9W | 2.0 | 40 | 21 |
CR85-S8A6P | 6mil-150×150um | 850 | 2mA | 8mW | 1.9 | 41 | 22 |
CR85-H127T | 27mil-689×689um | 850 | 0.25A | 1.25W | 2.0 | 42 | 22 |
CR85-H336T | 36mil-862×910um | 850 | 0.7A | 2.9W | 2.2 | 39 | 24 |
CR90-H410D | 10mil-245*185um | 905 | 0.1A | 3.3W | 16.5 | 25 | 26 |
CR90-U311D | 11mil-285*245um | 905 | 0.3A | 25W | 30 | 22 | 28 |
CR94-S4A6P | 6mil-155×155um | 940 | 3.5mA | 5.5mW | 1.7 | 30 | 12 |
CR94-S8A6P | 6mil-150×150um | 940 | 2mA | 7.5mW | 1.9 | 44 | 21 |
CR94-L2A8P | 8mil-185x185um | 940 | 4.5mA | 20mW | 1.9 | 32 | 16 |
CR94-L211P | 11mil-265*185um | 940 | 6mA | 19mW | 1.8 | 35 | 13 |
CR94-M2A9D | 9mil-235×245um | 940 | 20mA | 70mW | 1.8 | 40 | 21 |
CR94-M110P | 10mil-190×249um | 940 | 9mA | 90mW | 2.15 | 38 | 25 |
CR94-H127T | 27mil-689×689um | 940 | 0.2A | 0.9W | 1.8 | 42 | 21 |
CR94-H128S Random Array | 28mil-708×708um | 940 | 0.2A | 1.15W | 1.9 | 40 | 21 |
CR94-H336T | 36mil-862×910um | 940 | 0.4A | 2.85W | 2.0 | 40 | 21 |
CR94-H536T 3-Junction | 36mil-862X910um | 940 | 0.3A | 4.6W | 4.6 | 49 | 30 |
CR98-H251E | 51mil-1291x1096um | 980 | 0.22A | 2.1W | 3.4 | 41 | 22 |
CR10-L1A8M | 8mil-200x200um | 1064 | 2mA | 10mW | 1.7 | 40 | 22 |
