PRAY VCSEL
single-dot emitter
PRAY Series

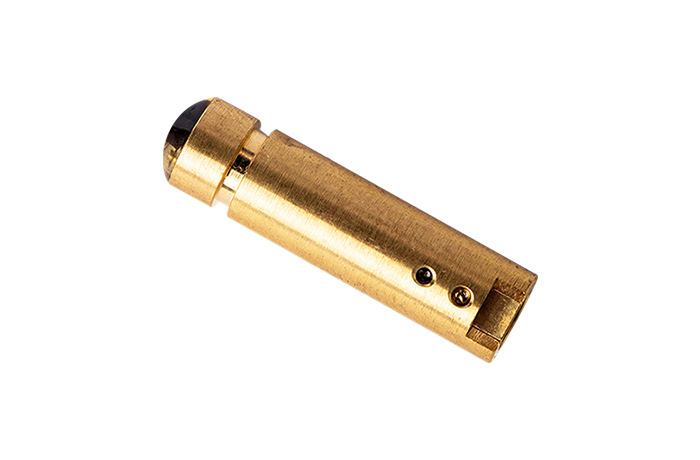

Raysees PRAY series products are single-spot laser emitters implemented with Raysees in-house single-emitter VCSEL and a collimating lens. By replacing EEL source in the standard TO-CAN package with VCSEL source, Raysees PRAY single-spot emitter has more advantages over the traditional device using EEL source, such as low power consumption, high beam quality, high temperature stability.
Raysees PRAY sources are mass produced in Raysees own manufacturing lines in Hefei and Shenzhen, under the ISO9001 quality management control.
Product Features
-
Products delivered to
global leading customers -
100%
In-house VCSEL -
Offer custom solutions
rapid response -
In-house packaging
with guaranteed delivery -
Certified workflow
and quality control -
Complete
patent portfolio
Applications
-
LDS ranging lidar
-
Obstacle avoidance
-
Laser scanning
-
Laser ranging
Raysees patented VCSEL and optics technology
Deliver the most reliable point laser source for sensing.
PRAY Product Series
|
Product ID
|
Dimension(Customizable)
|
λ(nm)
|
Lightspot Size
|
Optical axis Angle
|
Rated Optical Power @10mA&25℃
|
Operating Temperature
|
|---|---|---|---|---|---|---|
|
PC94-LS5B1A |
φ6.5*18mm |
940nm |
<8mm@7m |
0.7~1.7° |
5mW |
-10~+60℃ |
|
PC94-LS5A2B |
φ6.0*22mm |
940nm |
<8mm@7m |
<0.5° |
5mW |
-10~+60℃ |
|
PC79-LS5B1A |
φ6.5*18mm |
793nm |
<12mm@7m |
0.7~1.7° |
4mW |
-10~+60℃ |
|
PC79-LS5B2A |
φ6.5*20mm |
793nm |
<12mm@7m |
0.7~1.7° |
4mW |
-10~+60℃ |
