LRAY Series
VCSEL flood illuminator

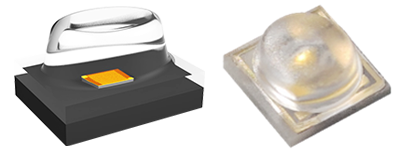

VCSEL flood illuminator with freeform optics
Raysees LRAY™ light sources generate high quality flood illumination by integrating Raysees VCSEL chips with freeform lens. With Raysees 1.5th optical packaging process, the mass production rate of LRAY illuminators can be significantly raised, compared to that of conventional flood illuminators using diffusers.
LRAY Series
Unlike traditional flood illuminator which uses diffusers to generate a flood pattern, Raysees LRAY VCSEL illuminators provide uniform flood illumination through a tightly combination of VCSEL and freeform optics. With higher optical efficiency and higher mass production rate than the traditional flood illuminator using diffusers, Raysees LRAY illuminators can be widely used in scenarios requiring flood illumination such as smart surveillance, special lighting, ADAS (DMS/OMS/Gesture recognition), biometric identification, and so on. Raysees LRAY VCSEL illuminators have passed AEC-Q102 certification and comply with eye safety requirements and environmental regulations.
Raysees LRAY sources are mass produced in Raysees own manufacturing lines in Hefei and Shenzhen, under the ISO9001 quality management control.
Product Features
-
High optical
efficiency -
High uniform
beam intensity -
Customization
with flexibility -
Domestic
supply chain -
In-house packaging
with guaranteed delivery -
AECQ-102 and IATF16949
certificated
Applications
-
3D ToF
-
Infrared light vision
-
Face recognition
-
DMS/OMS
Industry leading optical integration technology
Global patent portfolio.
LRAY Product Series
|
Product Model
|
Drive Current
|
Voltage(V)
|
Electric Power(W)
|
Iuminous Power(W)
|
Peak Wavelength(nm)
|
FOV(H°/V°）
|
LxWxH(mm)
|
|---|---|---|---|---|---|---|---|
|
LR85C32-H335 |
3600 |
2.10 |
3.00 |
3.0 |
850 |
52/36 |
3.45x3.45x2.60 |
|
LR85C32-H346 |
3600 |
2.10 |
3.00 |
3.0 |
850 |
60/45 |
3.45x3.45x2.60 |
|
LR94C32-H335 |
3600 |
2.00 |
3.00 |
3.0 |
940 |
52/36 |
3.45x3.45x2.60 |
|
LR94C32-H346 |
3600 |
2.00 |
3.00 |
3.0 |
940 |
60/45 |
3.45x3.45x2.60 |
|
LR94C32-H357 |
3600 |
2.00 |
3.00 |
3.0 |
940 |
72/55 |
3.45x3.45x2.95 |
